Raspberry Barrel Wiring
There are many connections required in the Raspberry Barrel so several wiring harnesses were contructed to connect the various components. Below are various diagrams showing the connections internal and external to the barrel.

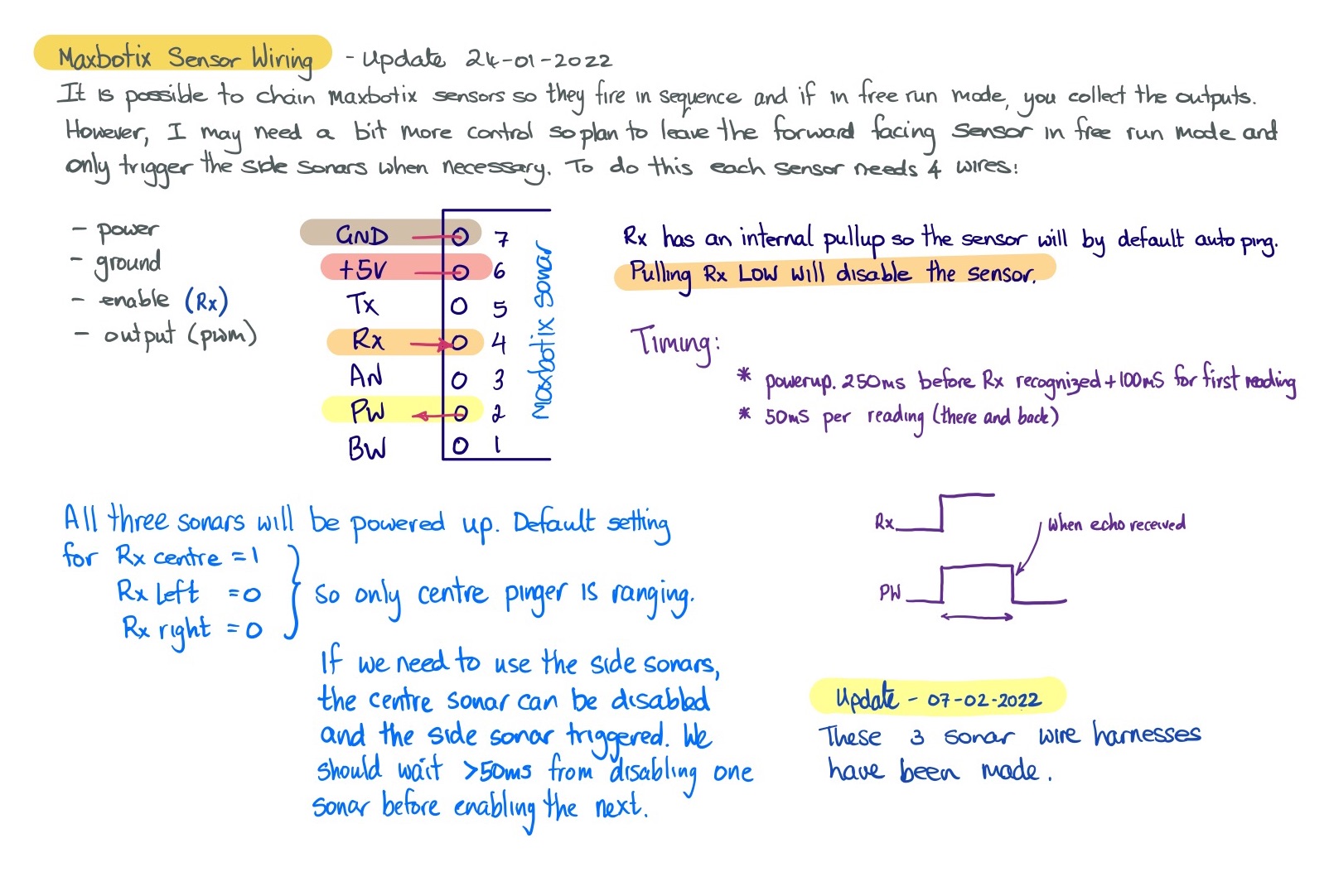

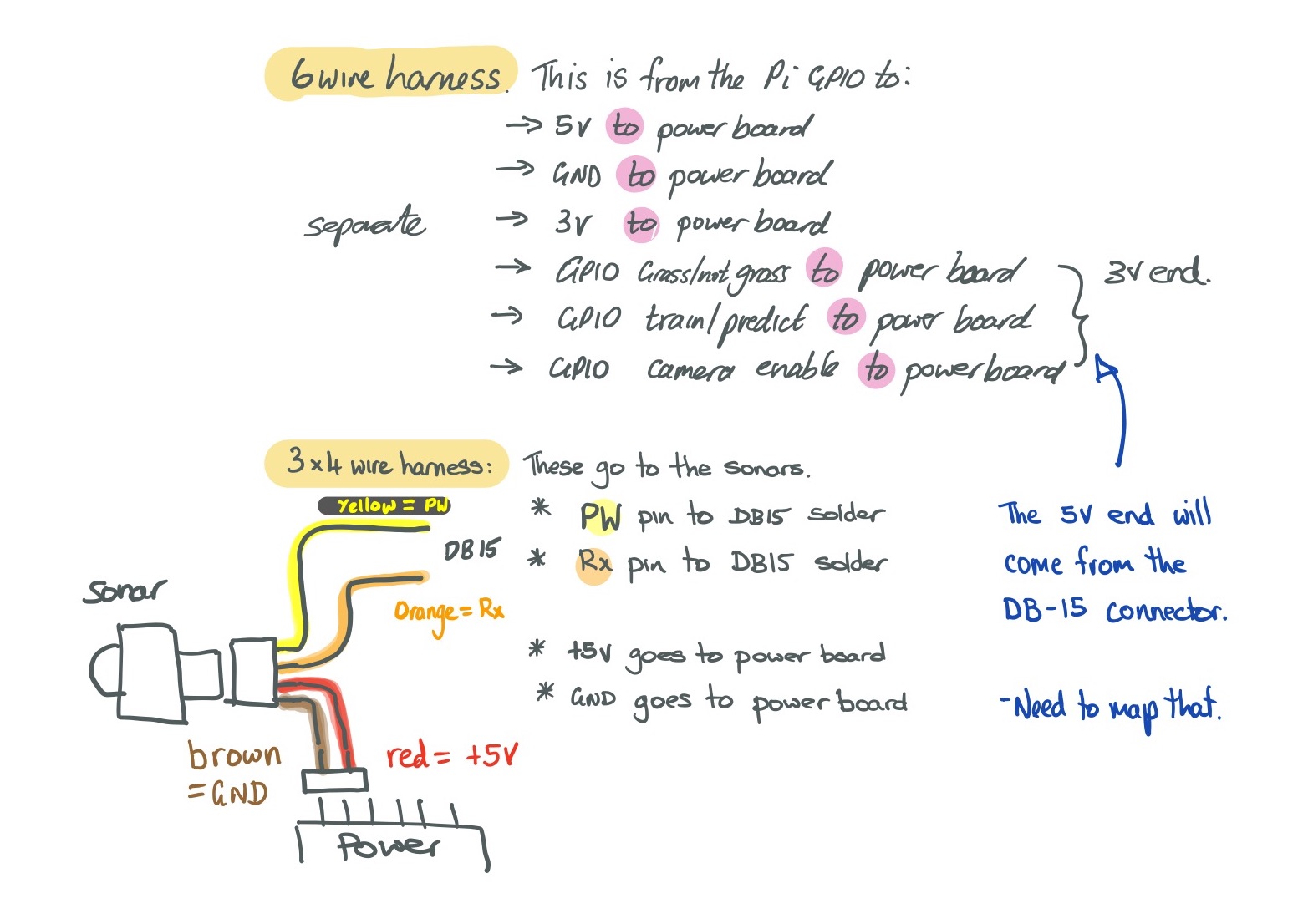

Sonar Wiring Harness

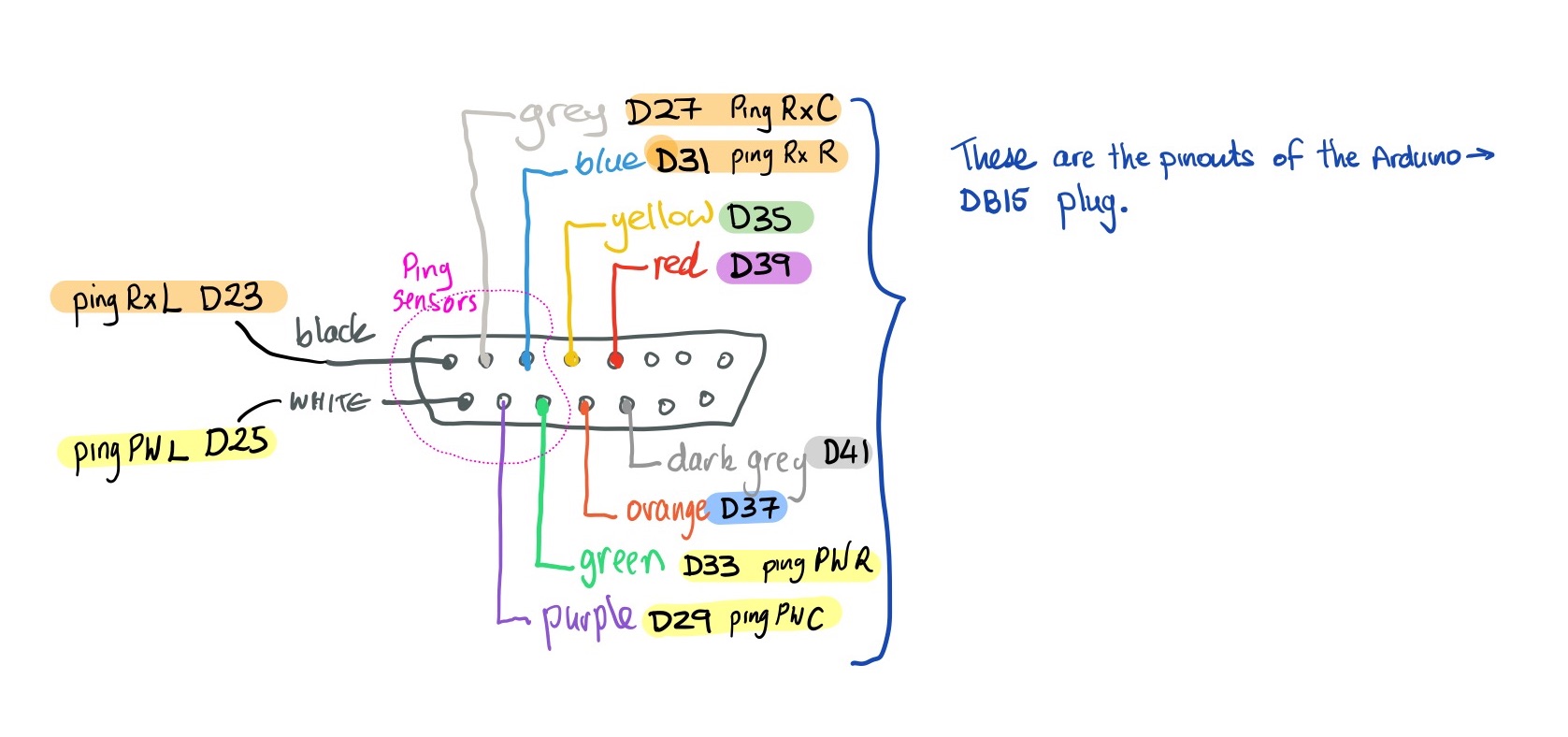

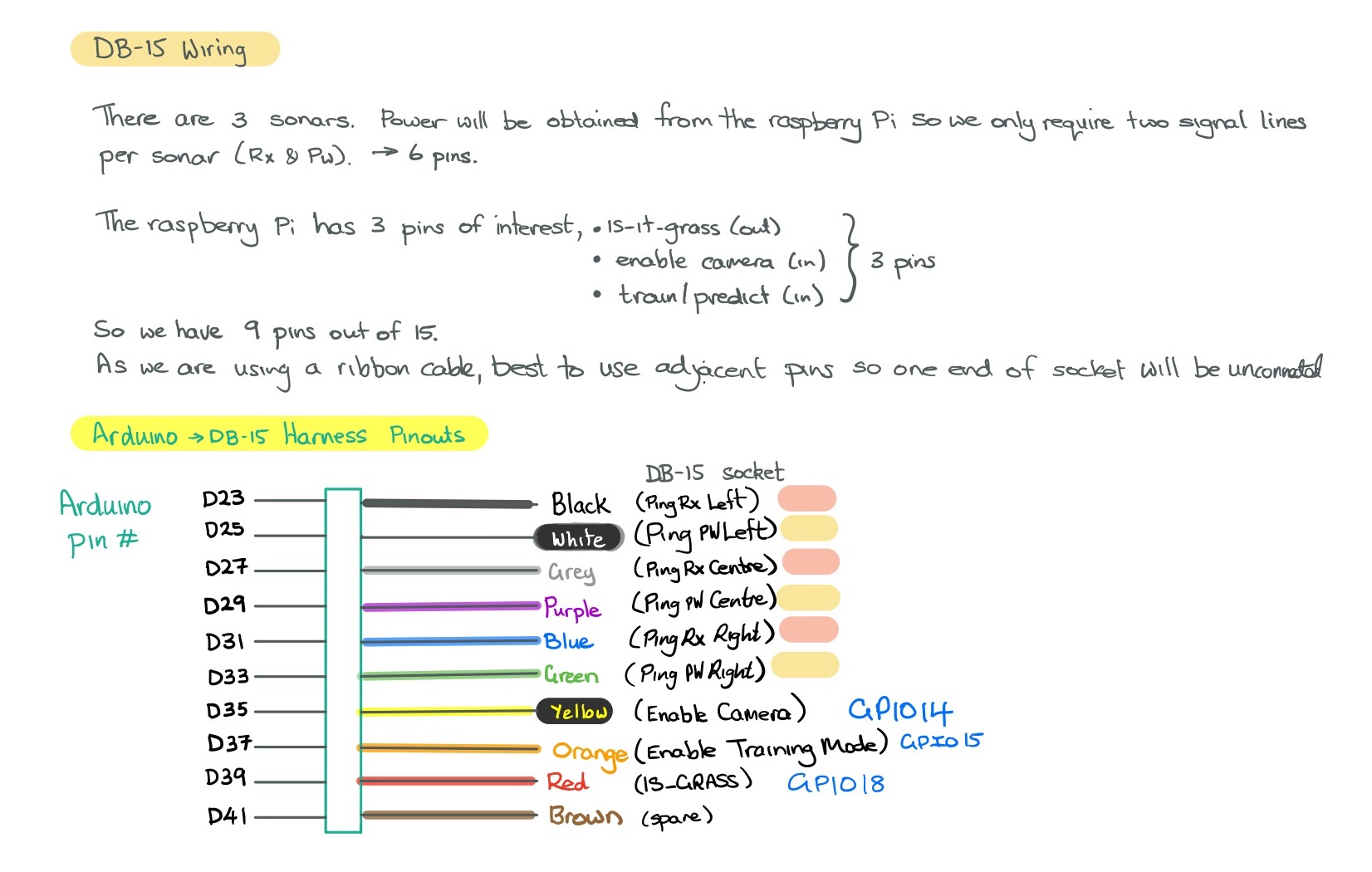

DB15 Connections

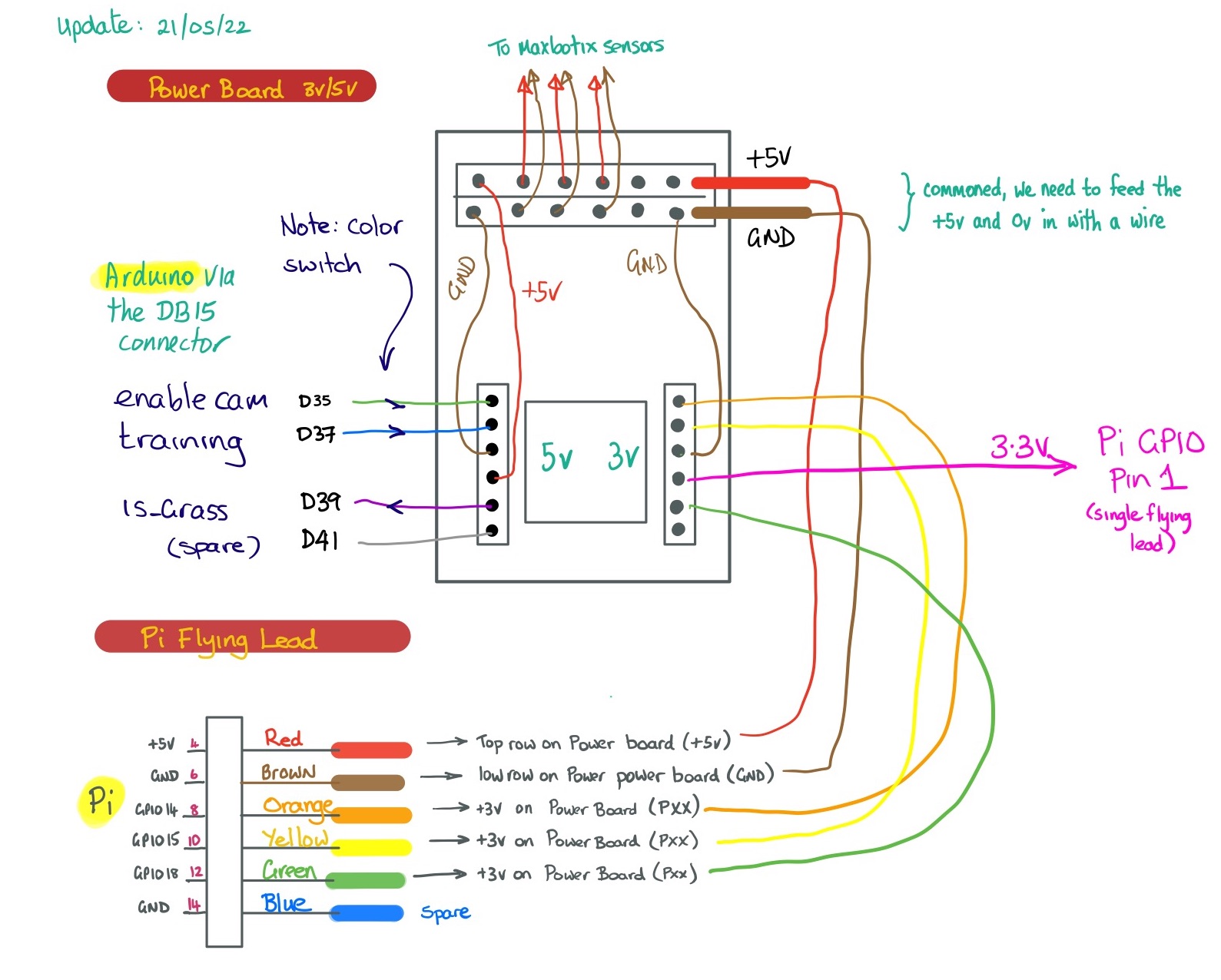

Level Shifter Connections

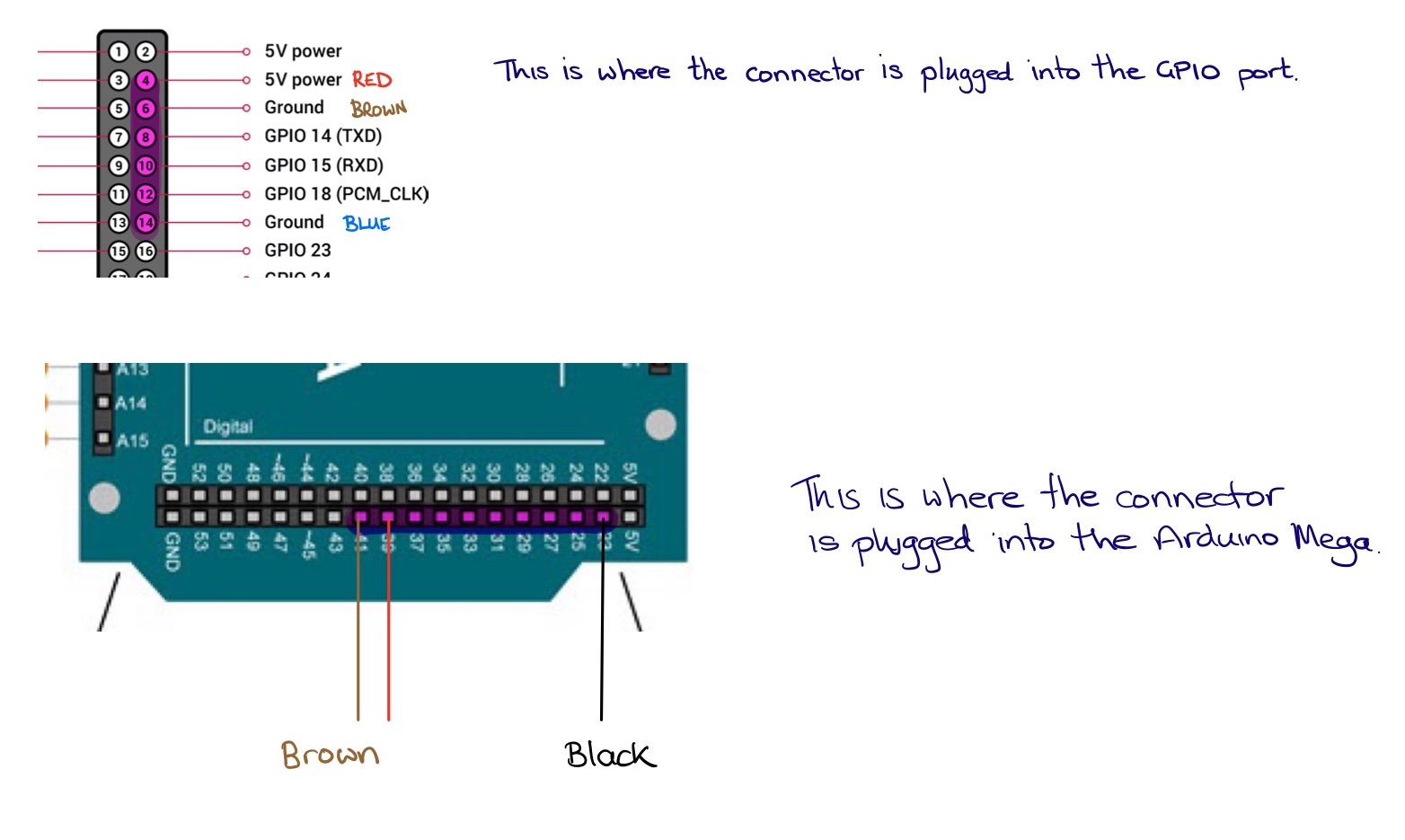

Arduino and GPIO Connectors
June 2023
